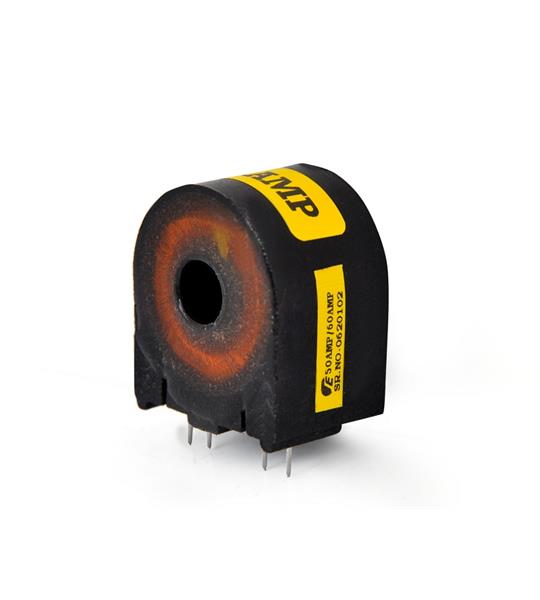

60 AMP. CURRENT TRANSFORMER

Product Code : SET2615-2500-60APCM

  • Designed and developed as per European Standards IEC : 62053-21 / IS: 13779 , IEC : 60044-1 Part-1.
  • Ideal for Electronic Safety Control Gear design ,
  • Overload Sensing , Furnace Temperature Control ,
  • Motor Speed Control , Instrument Transformer ,
  • Energy Metering ,
  • Power Quality Monitoring.
  • Home Automation Devices
  • Earth Leakage Circuit Braker CT ( ELCB CT )
  • Residual Current Circuit Braker CT ( RCCB CT )
  • Ground Fault Interruptor CT ( GFI CT )
  • Variants available in Self Wire (Flying Leads) or PCB Mounting Type CT.

Request Quote

Product Application

Overload Sensing CT Digital Sensing Transformers Measuring and Instrumentation Transformers Motor Speed Control Power Quality Monitoring Protective relays Earth Leakage Sensing ELCB CT RCCB CT GFI CT

Technical Information

Inner Dia8 mm

Mounting TypePCB Mount

Accuracy Class1

Voltage Recommended Burden0.4@16.6

Height20 mm

Power Rating0 VA

Operating / Switching Frequency60 Hz

Rated Current Ir60 Amp

Ratio1:2500

Saturation Current Isat110 Amp

No. Of Windings1

Downloads (Cad Drawings)

SET2615-2500-60APCM
