FLYBACK TRANSFORMER

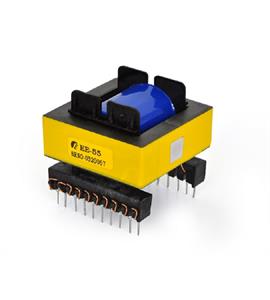

-524.jpg)

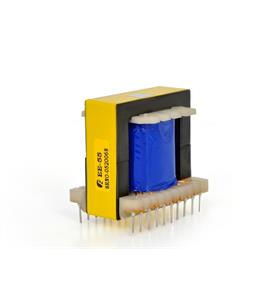

.-792.jpg)

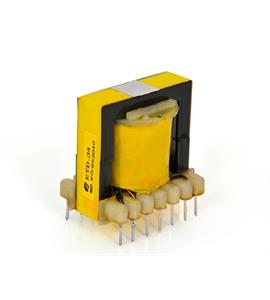

-404.jpg)

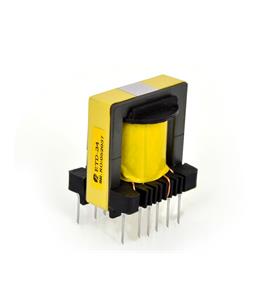

.-704.jpg)
ABOUT FLYBACK TRANSFORMER
What is a flyback transformer?
A flyback transformer is an electronic component that generates high-voltage pulses by storing and releasing energy in a magnetic field.
How does a flyback transformer work?
A flyback transformer is a coupled inductor with a rifted core. In every rotation, when the input voltage is put in the primary winding, energy is stored in the space of the core.
What is the main usage of the Flyback Transformer?
Flyback transformers are used in providing voltage transformation and circuit isolation in flyback converters.
Why is it called a Flyback Transformer?
A flyback transformer is so-called because the primary winding requires a relatively low-voltage saw-tooth wave. The wave gets powerful first and then gets switched off suddenly; this causes the beam on the display to fly back from right to left. TV and monitor flyback transformers have about ten pins at the bottom of the flyback.
High-Performance Flyback Transformers by Shah Electronics
Our flyback transformers are engineered to meet demanding electronic circuit requirements, making them a preferred choice for engineers and designers in various industries.
Applications for FLYBACK TRANSFORMER
Flyback transformers are used in AC/DC Converters, SMPS Charger Circuits , LED Drivers , Display Unit Drivers , Special purpose SMPS Power Supply units, DC/DC Converter, Inverters, solar battery chargers, solar inverters, solar lighting supplies.ABOUT FLYBACK TRANSFORMER
